What types of batteries are there?

Currently, we can find a wide variety of batteries on the market. In this article we explain how many types there are and their usefulness according to your needs.


New

The different types of batteries



There is a wide variety of batteries. Their size, composition, voltage or the possibility of recharging are some of their characteristics.



Non-rechargeable batteries



Non-rechargeable batteries are the most common batteries, with many shapes and sizes. Depending on the composition, there are saline, alkaline and lithium batteries. Let's take a tour of the main shapes.

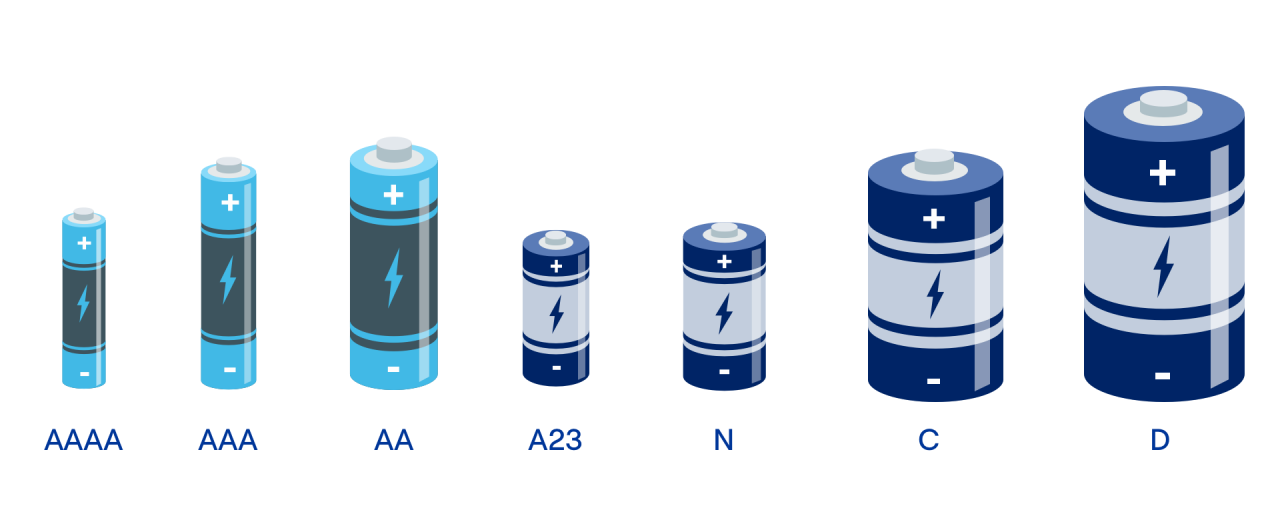

Cylindrical batteries



Saline batteries tend to be cheaper. Their operation is based on zinc chloride and ammonium chloride as an electrolyte. They are the ones that last the least amount of time. Their use is indicated in devices that are used infrequently or that consume little energy, such as, for example, the remote control of a television or a scale.



According to the Ecolec Foundation, created by the National Association of Manufacturers and Importers of White Line Appliances (ANFEL) and the Spanish Association of Small Appliance Manufacturers (FAPE), one of these batteries has the capacity to contaminate 12,000 liters of water.



The composition of alkaline batteries is different: They are made with zinc and manganese dioxide. In this case, the electrolyte is potassium hydroxide. For this reason, its performance and duration are higher than those of a saline battery. It is recommended that they be kept at a temperature below 25 ºC, since heat accelerates chemical reactions, decreasing their power over time. However, it is also not advisable that they be stored in the refrigerator. Due to their characteristics, their use is usually reserved for devices that consume a lot of energy or that are used regularly, such as the control of a remote control car or a video game console.



Button batteries



They are the smallest batteries. Their performance is highly optimised: They have a high energy density, their discharge is less than 1% per year, they are very economical, their voltage discharge is uniform, they are very stable in the face of temperature changes and do not overheat. That's why they have a lot of versatility and numerous applications.



They are usually used in watches, hearing aids, computers, medical devices and pacemakers. According to their composition, they can be classified into alkaline, lithium, silver oxide and zinc-air (those usually used by hearing aids, which have a tab to facilitate their installation).

There is a wide variety of types of button batteries, so it is necessary to follow the manufacturer's instructions to find the right battery.



Despite their size, they are capable of contaminating about 6,000 litres of water, according to data from the Ecolec Foundation.



Batteries



We must clarify the difference between a cell and a battery.

Difference No. 1: A cell's charge will deplete and it can't be recharged, unlike a battery which, if connected to electric current, is recharged.   It must be stressed that cells should never be recharged and that doing so can pose serious dangers.



Difference No. 2: A cell will always hold its charge if not in use, unlike a battery, which tends to lose its charge over time.



Rechargeable batteries



This type of battery is usually more expensive, but having the possibility of recharging implies savings in addition to reducing the amount of waste that is generated. Let's talk about the most common rechargeable batteries.



NiCd



Rechargeable nickel-cadmium batteries have a poorly optimised performance, since their recharge usually presents problems (the memory effect, with each recharge the voltage or capacity is reduced, gradually hindering the use of 100% of its energy) and it has cadmium in its composition, which is a very polluting element. For these reasons, they are used less and less, despite the fact that a priori they have a greater number of potential recharges than other rechargeable battery models.



NiMH



They are rechargeable nickel-metalhydride batteries, with high energy density. In addition, the memory effect has little impact on this model. On the other hand, they have a higher self-discharge rate than NiCd rechargeable batteries, so they are indicated for devices that have continuous consumption and not intermittent or sporadic.



Keep in mind that these rechargeable batteries have a low self-discharge version, know as LSD-NiMH, which offset this issue.



These types of batteries must be recharged with care, since their charging speed is low and they tend to overheat.



Temperature changes can affect their performance.



Therefore, they have to be recharged in a device capable of identifying the maximum load and stopping the process, otherwise the overheating could cause the electrolyte to escape.



Li-ion



This denomination refers to rechargeable lithium batteries, such as the ones in mobile phones. Due to their high energy density, small size, low weight and low rate of self-discharge, they are versatile and their use in mobile phones means that more technical improvements are being developed every day in this regard. However, their manufacturing process is more expensive and their charge cycles still have a high margin of improvement compared to other rechargeable batteries.



Recommendations for use



In this list you will find some recommendations for using batteries:

  1. It is always necessary to follow the instructions of the manufacturer of the device you are going to put the batteries in, as well as the instructions of the manufacturer of the batteries.

  2. The packaging of the batteries includes information such as their characteristics and the expiry date.

  3. Read the instructions for placing the batteries: If you do not place the polarity correctly, you can cause damage to your device.

  4. If you are not going to use the device for a long period of time, remove the batteries so that they do not discharge or sulphate.

  5. When you take out the batteries, store them in a dry place, away from extreme temperatures and out of the reach of children or animals.

  6. Try not to mix batteries that have had different uses: Mixing new batteries with used batteries decreases the performance of the former.

  7. Check whether they are rechargeable or non-rechargeable batteries. Do not recharge rechargeable batteries, as it can be dangerous. If they are rechargeable batteries, always follow the instructions and do not try to use the recharging device from one model for another that is not compatible.

  8. Once your battery is dead, take it to a collection station: you can find points in supermarkets and recycling points. Remember that they contain polluting and toxic elements, such as mercury, cadmium, nickel, lithium, lead, manganese or zinc.
